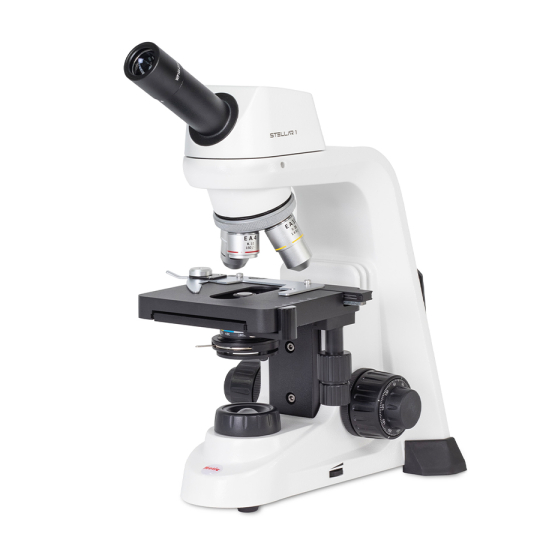

Stellar microscopes are easy to set up and use, making them perfect for students and educational settings. Key features include double slide storage, focus guidelines for easy adjustment, and a color-matched aperture diaphragm for sharp images. The 360° rotatable monocular head allows for space-saving storage, and the compact design includes a holder for the power cord and adapter. Built with durable materials, they’re resistant to damage from inexperienced users.
Specification Details
| Optical system | Finite optical system, 160mm |
| Observation tube | Monocular head |
| Inclination | 30º inclined, 360º rotating |
| Eyepiece(s) | Widefield WF10X/18mm |
| Nosepiece | Quadruple |
| Objective classification | SA Achromatic, DIN |
| Objective information | 4X/0.10 (WD 17.9mm), 10X/0.25 (WD 5.3mm), 40X/0.65/S (WD 0.61mm), 100X/1.25/S-Oil (WD 0.165mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stage | Upright |
| Stage size | 125x115mm |
| Condenser | Abbe Condenser N.A. 1.25 |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Other features | Double slide storage, smart cable storage, Type C power input (also for battery pack) |
| Power supply | 100-240V (CE) |
| Dimensions LxWxH | 338x171x338mm |
