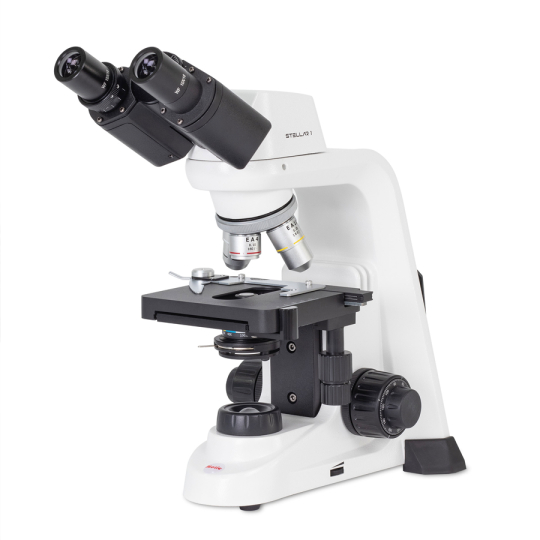

Stellar microscopes are easy to set up and use, making them perfect for students and educational settings. They feature robust construction, focus guidelines, and a color-matched aperture diaphragm for sharp, high-contrast images.
Specification Details
| Optical system | Finite optical system, 160mm |
| Observation tube | Binocular head, Siedentopf type |
| Inclination | 30º inclined, 360º rotating |
| Eyepiece(s) | Widefield WF10X/18mm |
| Nosepiece | Quadruple |
| Objective classification | Achromatic EA, DIN |
| Objective information | 4X/0.10 (WD 19mm), 10X/0.25 (WD 6.6mm), 40X/0.65/S (WD 0.45mm), 100X/1.25/S-Oil (WD 0.13mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stage | Upright |
| Stage size | 125x115mm |
| Condenser | Abbe Condenser N.A. 1.25 |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Other features | Double slide storage, smart cable storage, Type C power input (also for battery pack) |
| Power supply | 100-240V (CE) |
| Illumination features | Sleep mode (30 min. auto on-off) |
| Dimensions LxWxH | 338x171x338mm |
