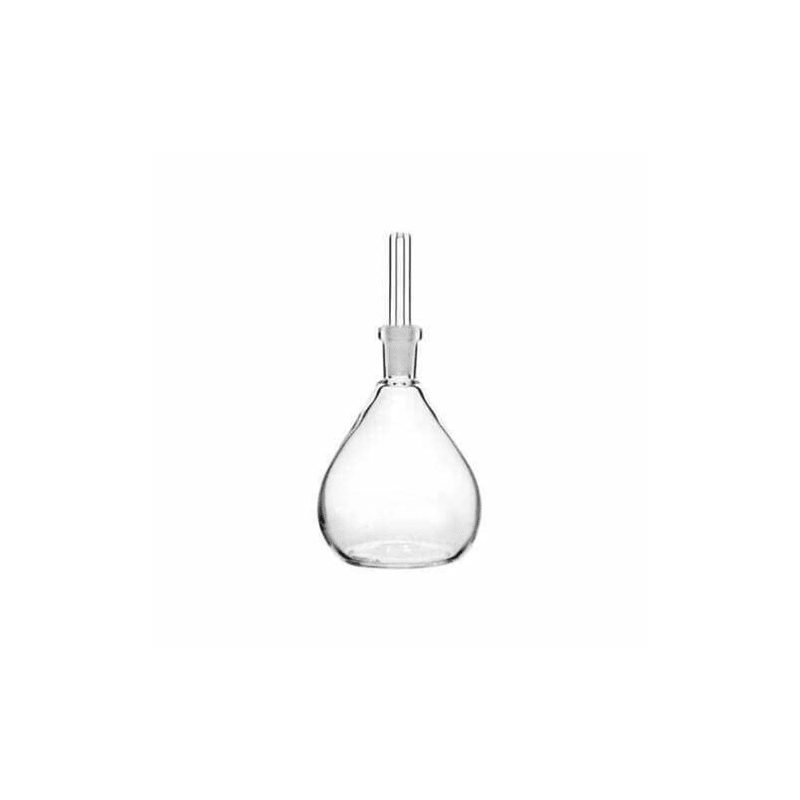

Precision glass pycnometer used in laboratories to determine the density or specific gravity of liquids and fine solids. It features a capillary vent stopper that allows excess liquid to escape, ensuring a highly accurate and repeatable volume.
Key Features
- Material: High-quality Borosilicate Glass 3.3, which provides excellent chemical resistance and low thermal expansion to minimize measurement errors due to temperature changes.
- Stopper: Ground-glass capillary stopper with a fine bore; calibrated versions often have stoppers and bottles matched with unique identification numbers.
- Design: Pear-shaped or cylindrical with a flat bottom for stability and to prevent spills.
| Item Code | Capacity (ml) | Height (mm) | Mouth Diameter (mm) |
|---|---|---|---|
| 1861-5 | 5 | 60 | 7 |
| 1861-10 | 10 | 70 | 7 |
| 1861-25 | 25 | 85 | 10 |
| 1861-50 | 50 | 100 | 10 |
| 1861-100 | 100 | 110 | 10 |
