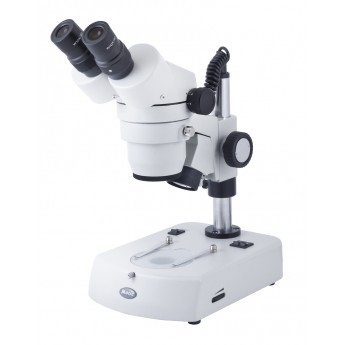

Motic SMZ-140 N2GG stereo microscope is designed for life science applications, providing high-quality optical performance and a durable, hard-coated surface. Perfectly suited for academic and professional environments.
Specification Details
| Optical system | Greenough |
| Observation tube | Binocular head |
| Inclination | 45° inclined, 360º rotating |
| Interpupillary distance | 54-76mm |
| Eyepiece(s) | Widefield WF10X/20mm with diopter adjustment, +/- 5 diopter on both eyepiece |
| Objectives system | Zoom, ratio1:4 |
| Objectives | 1X~4X |
| Working distance | 80mm |
| Stand type | Pole type stand with transmitted illumination |
| Base | 237 x 170mm |
| Head holder | For Ø25mm column and Ø74mm head with incident illumination |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stoke | 49mm |
| Illumination | Halogen 12V/15W with intensity control (Incident illumination) Halogen 12V/10W with intensity control (Transmitted illumination) |
| Accessories included | Black, white and frosted stage plates and dust cover |
| Length x width x height | 237 x 170 x 335mm |
| Weight | 6.2kg |
