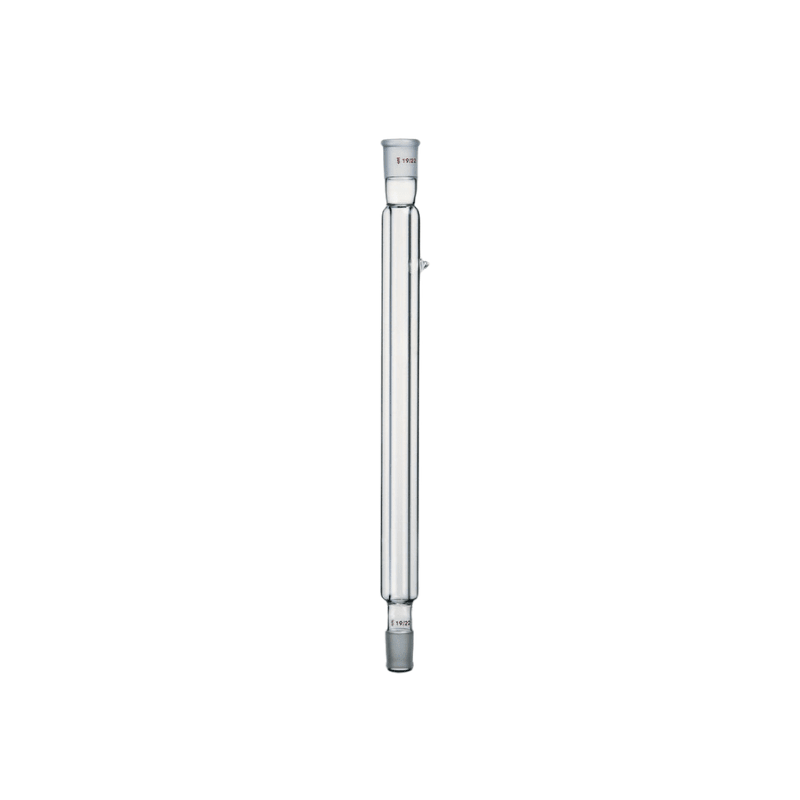

Fractional Distillation Column with an Internal Helix (often referred to as a Spiral or Helical Distilling Column). While similar to a Vigreux "thorn" tube, the "pig-tail" helix provides a specific centrifugal path for vapours to condense more efficiently.
Key Features
- Length: Approximately 200 mm (effective length).
- Internal Feature: A glass "pig-tail" helix or spiral coil fixed inside the cylinder.
- Joints: Standard ground glass joints, typically 24/29 or 24/40 (Size 24).
- Material: High-expansion 3.3 Borosilicate glass for superior thermal resistance.
How the "Pig-Tail" Helix Works
- Reflux Action: As hot vapours rise, the heavier, higher-boiling-point particles hit the curves of the helix, condense into liquid, and "run back" (reflux) into the boiling flask.
- Centrifugal Separation: The spiral shape forces the vapour to travel a longer path than a straight tube, increasing the surface area for heat exchange.
- Purity: Only the lightest, lowest-boiling-point vapours reach the top of the 200 mm column to pass into the condenser, resulting in a much purer distillate.
Common Applications
- Essential Oil Extraction: Used to separate delicate oils from water or alcohol bases.
- Alcohol Purification: Increasing the "proof" or percentage of ethanol by removing water and heavier fusel oils.
- Complex Solvent Recovery: Separating two liquids with boiling points that are relatively close together (e.g., within 20–30°C).
Pro-Tips for Setup
- Verticality: Ensure the column is perfectly upright so the condensed liquid flows smoothly down the helix spirals without pooling.
- Insulation: For very precise separations, wrap the exterior of the 200 mm cylinder in glass wool or aluminium foil to maintain a steady temperature gradient inside the helix.
- Clamping: Use a chain clamp or a large three-prong clamp to secure the column to a retort stand, as the internal glass helix makes it slightly heavier than a plain tube.
Specifications:
- Material: 3.3 Borosilicate glass
- Design: Straight shape
- Neck: Ground glass joint (socket)
- Joint Sizes: 19/26, 24/29, 29/32 (Select an option)
- Jacket Lengths: 200mm (Select an option)
- Brand: NONE
- Product of China
