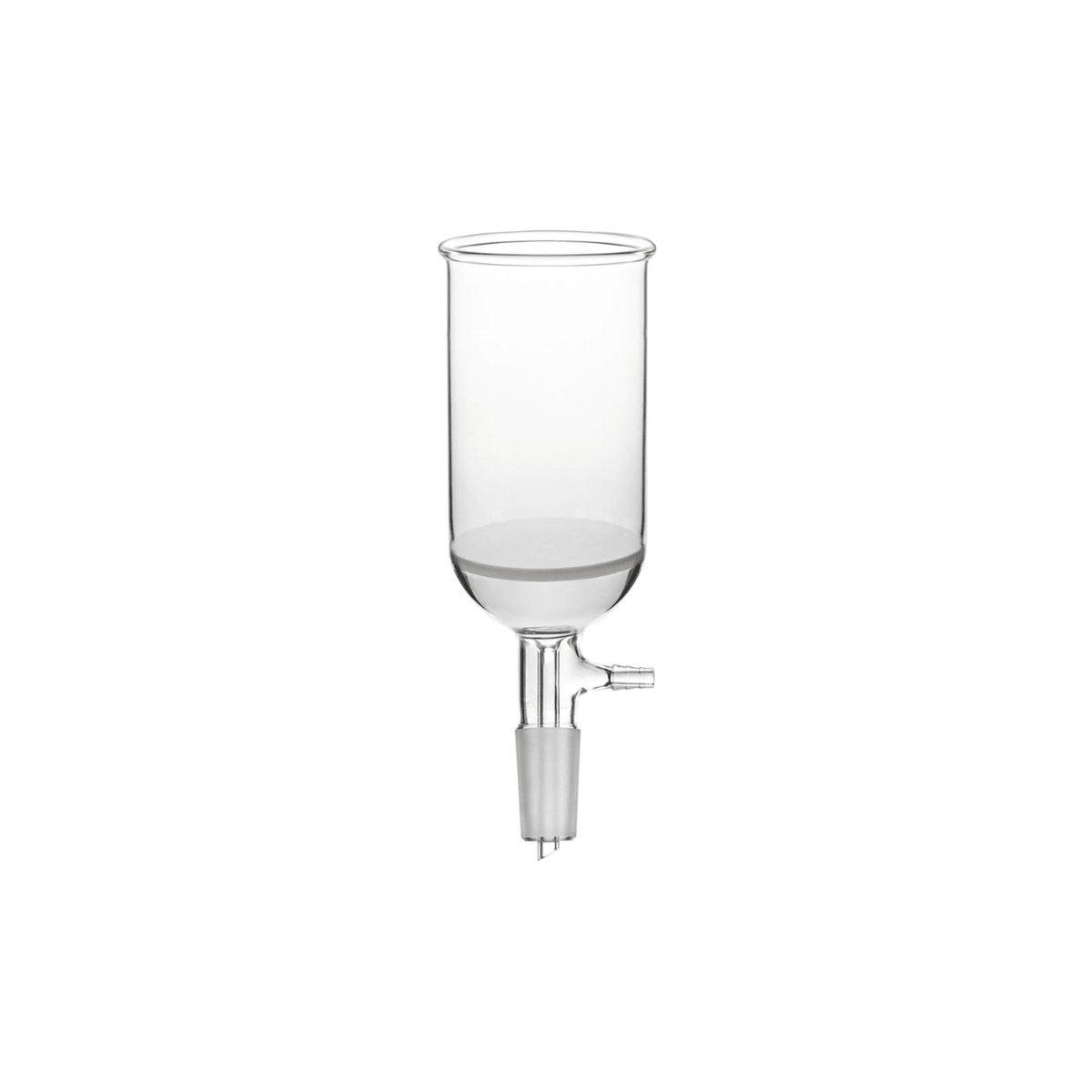

A glass sintered (fritted) disc Buchner Filter Funnel equipped with a standard ground joint stem with Vacuum . These funnels are designed for vacuum filtration where a secure, airtight connection to a filtering flask is required.
Key Features
- Body & Disc: Made from high-quality Borosilicate 3.3 glass, known for its excellent chemical resistance and thermal stability.
- Joint Type: Features a Standard Ground Mouth (conical joint) on the stem for direct fitment into laboratory flasks.
- Design: Heavy-walled construction to safely withstand the pressure differential during vacuum-assisted filtration.
- Vacuum Hose Barb: A hose barb (tubulation socket) is integrated into the stem, allowing the connection of flexible vacuum tubing.
- Recommended Tubing I.D.: 6 mm - 8mm
- Barb Outer Diameter (O.D.): 8mm - 10mm
- Tapered Design: The barb is slightly conical; the measurement at the tip is usually 1–2 mm smaller than the measurement at the base to allow the tubing to slide on easily and then seal tightly.
- Tubing Selection: Always choose tubing with an Internal Diameter (I.D.) that is 1–2 mm smaller than the barb's widest point.
- Pressure Rating: For vacuum applications (like using a Buchner funnel), use heavy-wall vacuum tubing (typically rubber or silicone) to prevent the tube from collapsing under suction.
Spesification
- Material: Clear 3.3 Borosilicate Glass
- Stem: Jointed
- Printing: White enamel markings (acid and scratch-resistant).
- Brand: JLAB
- Product of India
