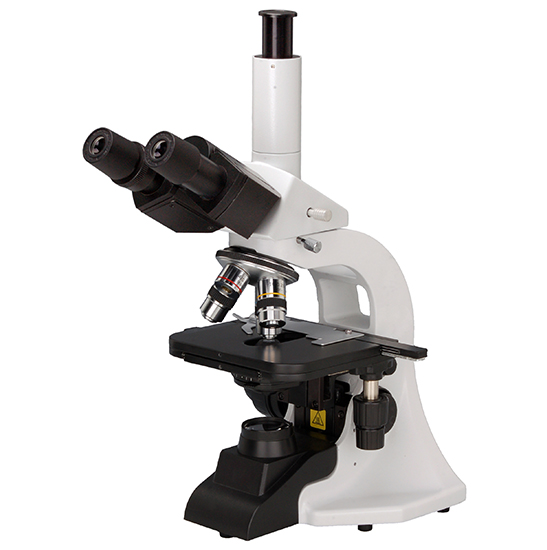

BS-2022 series biological microscopes are economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy and have long working life, it is also very comfortable for observation. With a trinocular head, a digital camera or digital eyepiece can be easily attached.
Specification Details
| Viewing Head | Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm |
| Eyepiece | WF10×/18mm (Optional: WF16×/11mm) |
| Objective | Achromatic Objective 4×, 10×, 40×, 100×(Oil) (Optional: Plan Achromatic or Infinite Plan) |
| Nosepiece | Backward Quadruple Nosepiece |
| Stage | Double Layer Mechanical Stage 132×142mm/ 75×40mm |
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
| Condenser | Abbe NA 1.25 with Iris Diaphragm and Filter |
| Illumination | 1W S-LED illumination, Brightness Adjustable (Optional: 12V/ 20W Halogen Lamp or Kohler illumination) |
| Optional Accessories | Phase Contrast Kit, Dark Field Attachment, Polarization Attachment, Rechargeable battery, Photo Adapter, Video Adapter |
| Package | 1pc/carton, 32cm*26cm*44cm, 6kg |
