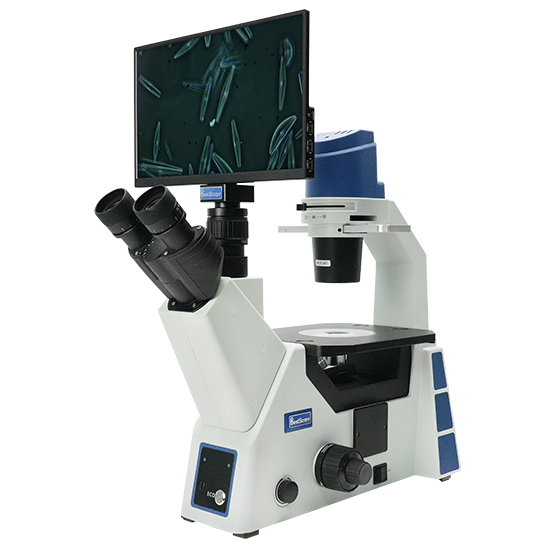

BLM5-291 is a state-of-the-art inverted biological microscope featuring an integrated 13.3-inch LCD digital screen and camera. With multi-output support (HDMI, USB, and Wi-Fi), it is ideal for real-time observation, image capture, and measurement in tissue culture and cell analysis.
Specification Details
| Optical System | Infinite color corrected optical system |
| LCD Digital Camera | BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
| Viewing Head | 45° inclined trinocular head, 360° rotatable, fixed tube, interpupillary distance: 50-76mm, splitting ratio R:T=80:20 |
| 45° inclined trinocular head, 360° rotatable, fixed tube, interpupillary distance: 50-76mm, splitting ratio R:T=0:100 or 100:0 | Optional |
| Eyepiece | High eyepoint wide field plan eyepiece PL10X/22mm, with adjustable diopter |
| High eyepoint wide field plan eyepiece PL10X/22mm, with micrometer and adjustable diopter | Optional |
| High eyepoint wide field plan eyepiece PL15X/16mm, with adjustable diopter | Optional |
| Objective | Infinite Long Working Distance Plan Achromatic Objectives |
| 10X/NA=0.25, WD=7.45mm | Standard |
| 20X/NA=0.40, WD=6.92mm | Standard |
| 40X/NA=0.65, WD=2.74mm | Standard |
| 60X/NA=0.70, WD=1.28mm | Optional |
| Infinite Long Working Distance Plan Achromatic Positive Phase Contrast Objectives | 4X/NA=0.13, WD=10.75mm |
| Infinity Long Working Distance Plan Fluorescence Objectives | 4X/NA=0.13, WD=18.95mm |
| 10X/NA=0.30, WD=7.27mm | Optional |
| 20X/NA=0.45, WD=6.03mm | Optional |
| 40X/NA=0.65, WD=1.79mm | Optional |
| 60X/NA=0.75, WD=1.28mm | Optional |
| Infinity Long Working Distance Plan Semi-Apochromatic Positive Phase Contrast Fluorescence Objectives | 20X/NA=0.45, WD=6.12mm |
| Marking lens | Marking lens |
| Nosepiece | Inward Quintuple Nosepiece |
| Condenser | N.A. 0.3 long working distance condenser, WD=72mm, detachable |
| XDCD 0.3 condenser phase adjustable sliding plate, with two centering handles | Standard |
| Microscope Body | Biological transmitted frame. External wide voltage system, input 100-240V, output 12V/5A. 5W LED (cold or warm color optional, cold color temperature 4750K-5500K, warm color temperature 2850K-3250K) center set, brightness adjustable, with light brightness indicator and infrared sensor. |
| Biological transmitted & reflected frame. External wide voltage system, input 100-240V, output 12V/5A. Transmitted & reflected illumination is continuously adjustable and independently controlled, with light brightness indicator, with infrared sensor, with LED fluorescent indicator light. Transmitted illumination (cold or warm color optional, cold color temperature 4750K-5500K, warm color temperature 2850K-3250K), center set. | Optional |
| Stage | Attachable mechanical stage, moving range: 120mm(X)*80mm(Y), stage size: 215mm(W)*250mm(L) |
| Extension stage, used to extend the stage | Optional |
| Φ35 Petri dish holder | Optional |
| Glass slide holder (Φ54mm and 26.5mm*76.5mm) | Optional |
| Terasaki holder (Φ65mm and 56mm*81.5mm) | Optional |
| Glass plate | Standard |
| Metal plate (kidney type) | Optional |
| Metal plate (Φ25mm) | Standard |
| Metal plate (Φ12mm) | Optional |
| Focusing | Coaxial Coarse and Fine Adjustment, tension adjustment knob, Fine Division 0.002mm, Fine stroke 0.2mm per rotation, Coarse stroke 37.5mm per rotation. Moving Range: 9mm, focal plane up 6.5mm, down 2.5mm |
| EPI-Fluorescent Attachment | Four channel LED fluorescent illuminator, including 385nm/470nm/560nm three LED light source. |
| UV1 band pass filter LED fluorescent module, for LED fluorescent lamp with a center wavelength of 385nm | Optional |
| B1 band pass filter LED fluorescent module, for LED fluorescent lamp with a center wavelength of 470nm | Optional |
| G1 band pass filter LED fluorescent module, for LED fluorescent lamp with a center wavelength of 560nm | Optional |
| Eyes protective plate, used to prevent harm from fluorescent light | Optional |
| Filter | Green filter (Φ45) |
| LBD filter (Φ45), only for halogen lamps | Optional |
| Cell Phone Adapter | Cell phone adapter (used to connect to eyepiece) |
| Cell phone adapter (used to connect to trinocular tube, include eyepiece) | Optional |
| C-mount Adapter | 0.35X C-mount adapter, adjustable focus, not available for fluorescence observation |
| 0.5X C-mount adapter, adjustable focus | Standard |
| 0.65X C-mount adapter, adjustable focus | Optional |
| 1X C-mount adapter, adjustable focus | Optional |
| Digital eyepiece interface | Optional |
| Other Accessories | Telescope (Φ30) |
| Internal hexagonal Spanner M3 | Standard |
| Internal hexagonal Spanner M4 | Standard |
