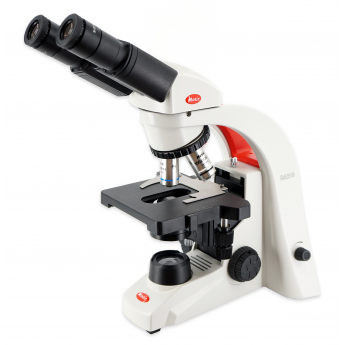

Motic BA210 RED is designed for both educational and medical applications. Tailored for ease of use, it features a robust build with high-quality CCIS optical system and rackless stage, delivering exceptional performance and reliability.
Specification Details
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Observation tube | Binocular head |
| Interpupillary distance | 48-75mm |
| Trinocular light split | Fixed 50:50 |
| Inclination | 30º inclined |
| Eyepiece(s) | Widefield WF 10X FOV-20mm with diopter adjustment |
| Nosepiece | Reversed quadruple revolving nosepiece |
| Objective classification | CCIS® Plan SC objectives |
| Objective information | 4X/0.10 (WD 15.5mm) 10X/0.25 (WD 17.4mm) 40X/0.65/S (WD 0.6mm) 100X/1.25/S-Oil (WD 0.14mm) |
| Stand type | Upright |
| Stage | Built in mechanical rackless stage on both sides (Right-hand control) |
| Mechanical stage X&Y range | 76 x 40mm |
| Condenser | Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slider slot |
| Focus mechanism | Coaxial coarse and fine focusing adjustment with tenstion adjustment |
| Illumination | 3W LED illumination with intensity control |
| Transformer | Internal |
| Power supply | 110-240V (CE) |
| Accessories included | Immersion oil (5ml), power cord, allen hexagonal key, thumb screw, vinyl dust cover, instruction manual 0.5x C-mount adapter included |
| Length x width x height | 360 x 190 x 398mm |
| Weight | 7.4kg |
