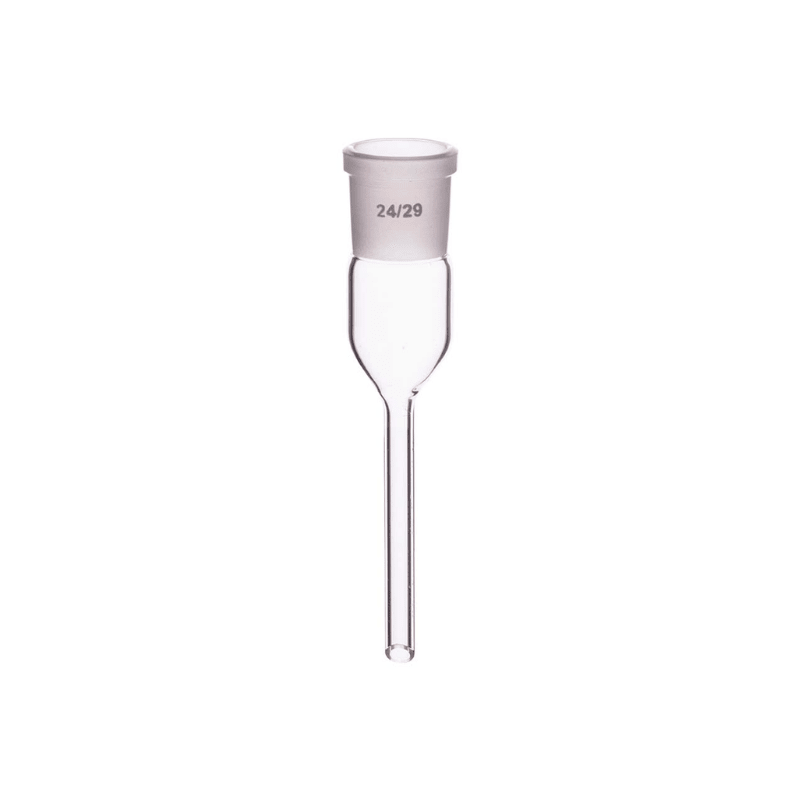

A Straight Drip Tip Adapter (also known as a straight delivery adapter or receiver adapter) is a glass connector designed to provide a direct vertical path for liquids in a laboratory setup.
Key Technical Specifications
- Angle: 180-degree (no Bend), providing the standard downward slope from a vertical spiral condenser.
- Joint Size: 24/29 Standard Taper (ST/NS) ground glass socket (top).
- Extended Drip Tip: Features a long internal delivery tube (often 100mm to 200mm in length) that extends far past the ground glass cone.
- Material: High-grade Borosilicate Glass 3.3, resistant to thermal shock and corrosive chemicals.
Why use a Long Drip Tip?
- Deep Capture: In a Büchner vacuum flask, the side-arm of the flask is high up; a long drip tip ensures the liquid bypasses the flask's vacuum hole and drops directly into the bottom.
- Reduced Loss: Minimizes "aerosolising" or splashing of the distillate, which is critical when collecting small volumes of expensive or volatile liquids.
Specifications:
- Material: 3.3 Borosilicate glass
- Neck: Ground glass joint cone with long drip tip.
- Joint Sizes: 19/26, 24/29, 29/32 (Select an option)
- Angle: 180-degree No Bend
- Brand: NONE
- Product of China
